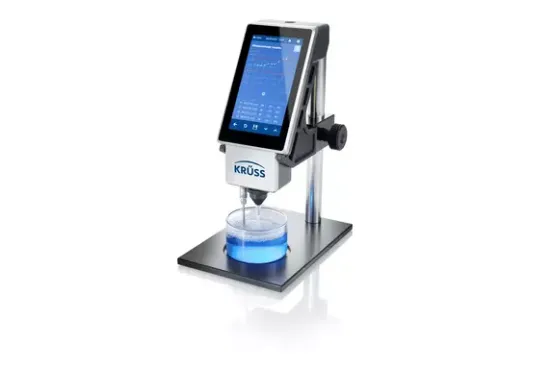

图片 便携式表面张力仪

便携式表面张力仪

用于清洗效果和镀膜槽的可移动式质量控制 浸入 – 点击 – 读数：便携式 BPT Mobile 采用表面张力(SFT)这个参数在几秒钟内，能够测定浴液表面活性剂含量。 由于是专门评估，质量检验员可立即判断浴液是否适用。 此外，为了及时调节浴液，便携式 BPT Mobile 显示消耗等原因造成表面活性剂含量随时间降低的过程。
0.000 (CNY)
发货至
*
*
配送方式
名称
预计送达日期
现价
没有配送选项

INSTRUMENT DIMENSIONS

Footprint 85 mm × 55 mm (W × D)
Height 220 mm
Weight (without accessories) 0.6 kg

INTERFACES

PC USB-Micro-B
Memory up to 20 million measurements

ENVIRONMENT

Operating temperature 5 to 60 °C
Humidity without condensation

POWER SUPPLY

Voltage 5 V (powered via USB)
Power consumption 2.5 W
Battery runtime 10 h operating time

HOUSING AND PERIPHERALS

Touch display integrated color IPS display
(480 × 854 pixel, size 5'')
Stand included

SAMPLE DIMENSIONS

Min. recommended sample volume 15 mL
(sample vessel SV23 recommended)

TEMPERATURE MEASUREMENT

Range 0 to 100 °C
Resolution 0.1 °C
Locations sample liquid

SOFTWARE

Software type integrated user interface
Software modules Bubble pressure (included)

BUBBLE PRESSURE

Results dynamic surface tension vs. surface age
dynamic surface tension at constant surface age
single dynamic surface tension / bath concentration (optional)
Range (surface tension) 10 to 100 mN/m
Resolution (surface tension) 0.1 mN/m
Precision (surface tension) ±0.5 mN/m
Range (surface age) 10 to 30000 ms
Resolution (surface age) 1 ms
Precision (surface age) max. 7.5 %

DATA OUTPUT

Type Microsoft Excel (xml format) via USB

PRESSURE MEASUREMENT

Maximum pressure 1250 Pa
Precision 2 %
