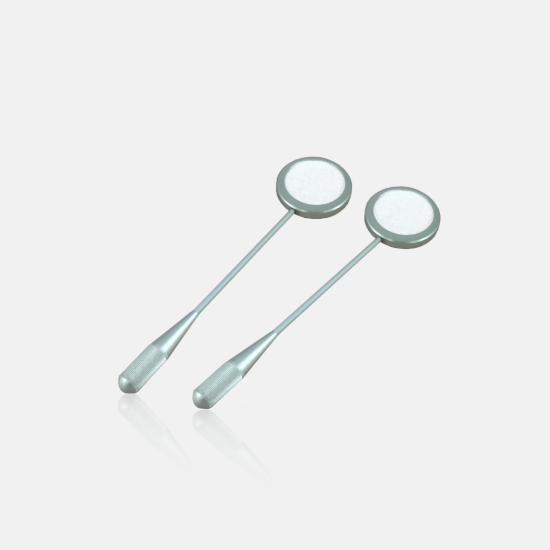

UV-NIR Laser beam visualizers
139.00 € Detects wavelenghts from UV to NIR Works with CW and pulsed laser light Requires no charging High sensitivity to laser radiation – 0.1 mW/mm2 Damage threshold for pulsed laser – 1J/cm2, 10ns Spectral range 880 – 1070 nm190-1090 nm + 1470-1600 nm
Description
Laser beam visualizers are designed to detect UV and IR both CW and pulsed laser light radiation.
These visualizers are fabricated from aluminum with a organic polycrystal photosensitive region, which enables easy location of UV-VIS-NIR light beams and focal points. As it is not necessary to charge the active region both CW and pulsed laser light will be detected even in darkened room conditions.
Technical information
| Product code | IRV-R-1 | IRV-G-1 |
| Threshold sensitivity W/cm2, (mW/mm2) | 0.01 (0.1) | 0.02 (0.2) |
| Spectral range, nm | 190-1090 + 1470-1600 | 880 – 1070 |
| Emission | Red | Green |
| Active sides | one |
| Laser beam size, Ø mm | 35 |
